Pressure Sensors in Industrial Pipelines: Selection and Integration

Pipeline pressure monitoring drives safety interlocks, flow compensation, and equipment protection. Piezoresistive and capacitive transmitters dominate process industries, but wrong range, tapping, or grounding causes drift, pulse damage, or false DCS alarms. Senseiot supports oil, chemical, and water projects—this article focuses on pipeline engineering essentials.

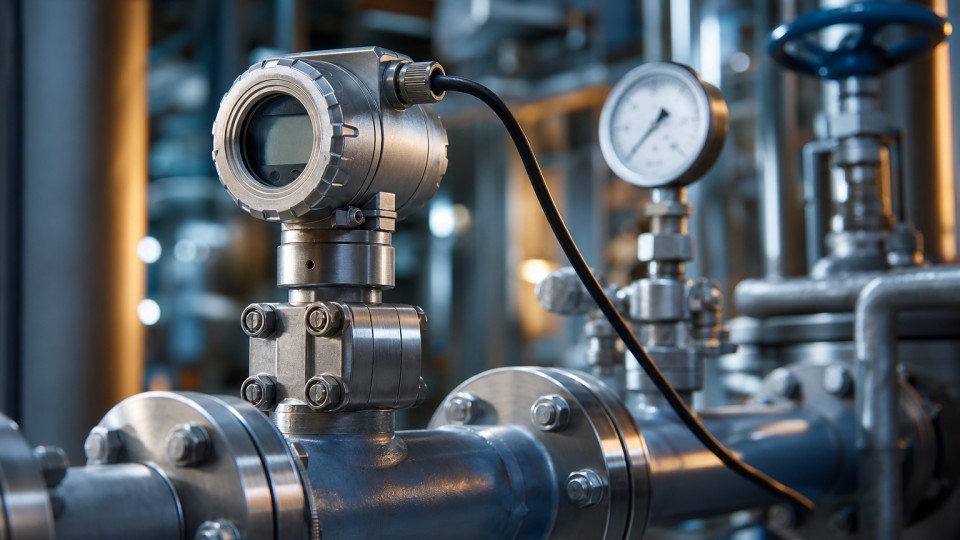

Gauge, Absolute, and Differential Pressure
Gauge, Absolute, and Differential Pressure

Gauge, Absolute, and Differential Pressure

Gauge references atmosphere—typical for pipelines. Absolute suits vacuum or altitude-sensitive systems. Differential measures ΔP for orifice flow and filter clogging.

Define medium state and reference first. Steam often uses gauge plus temperature compensation; sealed reactors may need absolute sensing.

Mixing gauge and absolute causes ~100 kPa errors. See Product Catalog naming or ask engineering support.

  • Gauge: vs atmosphere, most common
  • Absolute: vacuum, sealed systems
  • Differential: flow, level, filter ΔP

Piezoresistive vs Capacitive Elements

Piezoresistive silicon offers high sensitivity and mid cost for 0.1–100 MPa; use isolating diaphragms or oil-filled caps for corrosive media.

Capacitive designs excel at long-term stability and low ΔP—10 Pa–1 MPa precision applications.

Slurries and crystals need large diaphragms, flush ports, or remote seals—see Industry Applications.

Piezoresistive vs Capacitive Elements
Piezoresistive vs Capacitive Elements

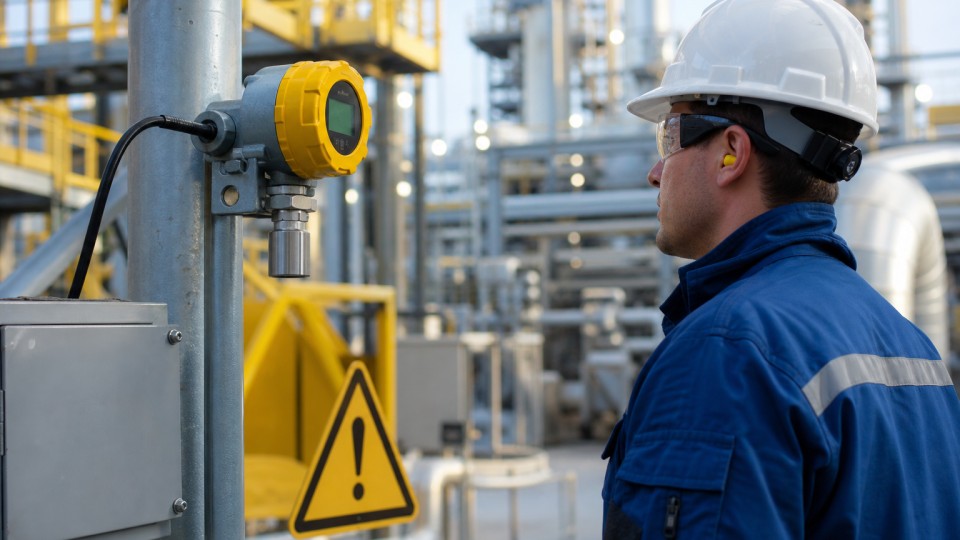

Range, Overpressure, and Safety Margin
Range, Overpressure, and Safety Margin

Range, Overpressure, and Safety Margin

Span should cover normal operation with 20–50% headroom—best linearity at 50–70% FS. Do not max out span for rare peaks; pick higher proof pressure.

Water hammer may multiply pressure instantly—choose ≥5× proof or snubbers/dampers.

SIL loops need redundant sensors and diagnostics—separate from general monitoring. Submit specs via Request a Quote.

Process Connections and Orientation

G1/2, NPT, DN flanges—orient diaphragm per datasheet to avoid trapped gas bubbles. Never swap H/L on differential units.

Hot media: impulse lines with condensate pots or remote capillaries. Cold: heat-traced lines to prevent freeze.

Outdoor: IP65+, surge protection, single-point ground on 4–20 mA loops.

  • Operate at 50–70% FS when possible
  • Snubbers for water hammer
  • Differential H/L must be correct
Process Connections and Orientation
Process Connections and Orientation
Temperature Compensation and Calibration
Temperature Compensation and Calibration

Temperature Compensation and Calibration

Silicon drift 0.02–0.1% FS/°C—premium units digitize with onboard temperature. Split architectures for extreme swings.

Field cal: zero at atmosphere (gauge) or vacuum reference (absolute); span with precision pump. Interval 12 months—6 for safety loops.

Modbus/HART exposes internal temperature and diagnostics—Product Catalog.

Outputs and System Integration

4–20 mA resists EMI on long DCS runs; 0–10 V for short PLC links; RS485 Modbus for multi-drop; HART adds digital on analog.

Match filter bandwidth: steady pipelines 1–10 Hz; hammer analysis needs kHz sensors—transmitters filter peaks away.

Senseiot gateways uplink 4–20 mA to cloud SCADA templates in Industry Applications.

Outputs and System Integration
Outputs and System Integration
Troubleshooting and Lifecycle
Troubleshooting and Lifecycle

Troubleshooting and Lifecycle

Failures: clogged taps, corroded diaphragms, lightning, overpressure offset. Check valves → impulse line → transmitter → loop resistance.

Log install date, span, medium, shocks—recalibrate or replace after overpressure even if readings look fine.

Full pipeline monitoring packages—Request a Quote from Senseiot.
